Animal Identification
For the field of animal identification, we produce highly developed animal transponders, injection devices and reading devices for both pets and livestock.
LIVESTOCK
The electronic identification of farm animals is carried out via an ear tag or a so-called bolus, a ceramic unit located in the animal's stomach. The electronic identification of farm animals is not only increasingly required by the authorities (EU regulation for sheep and goats) but also offers farmers advantages in controlling the feeding and milking processes.
PETS
To identify dogs and cats, we offer both glass transponders in sterile packaging and the corresponding injection devices in compliance with ISO 11784 / 11785. This identification is valid for the EU pet passport, which is needed to cross borders. Most pets are fitted with a transponder so that they can be returned to their owner if they are lost.
PIGEONS & FISH
We offer specially developed rings with built-in transponders to identify birds. They are used in research and in pigeon racing. A special reader detects the returning carrier pigeon at the moment it flies into its loft. Transponders in fish allow their migration to the spawning grounds to be tracked and are used especially in salmon farming.
Our animal transponders are available in the following designs:
- ISO glass transponders
- One-time implants
- Pigeon rings
- Boluses
- Ear tag inlays
Transponders
ISO glass ID 162
The ID 162 is a transponder designed for animal identification in compliance to ISO 11784/11785. It is available as injectable transponder as well. Types with EM4305 und Hitag S are programmed with customer specific data or country coding.
ID K162
The ID K162 is a transponder designed for animal identification in compliance to ISO 11784/11785. Single use implanter with 6 bar code lables included and / or parylene coating is optional.

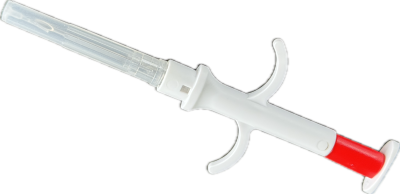

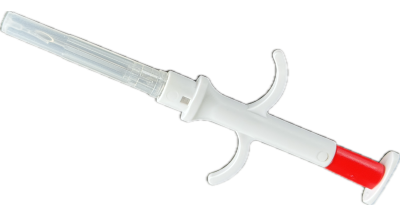

Single use implanter
The ID K162/DS is a transponder designed for animal identification in compliance to ISO standards 11784/11785. Single use implanter with bar code labels included, parylene coating optional.
Multiple use implanter
The multiple use implanter is suitable for ID K162 canulla with 1.41mm and 2.12mm trasnponder respectively.
pigeon ring
The pigeon ring is mainly used to identify race pigeons. The chip in this ring contains an internal random generator for the alterable part of the ring number. This feature is unique and the security is much higher than on any other pigeon ring on the market.
Readers
ARE i5
The ARE i5 is a stationary variety of the mobile ARE H5 reader. The i5 can read every current Read Only transponder in ASK and PSK area and also the ISO 11784/11785 fdx and hdx transponder. The ARE i5 offers a serial and an USB interface. Furthermore offers the i5 an optional Bluetooth function. The ARE i5 ist typically used in animal identifaction as well as in automation and logistics.
AMP 2 TWIN
AMP 4 TWIN
ARE H3
The ARE H3 is an ISO handheld reader for FDX-B transponder according to ISO standard 11784/11785. It is suitable for simple applications, where only the transponder code must be displayed. It is used in animal identification field, e.g. in animal practices, animal husbandries or slaughterhouses.
ARE H9 LF
The ARE H9 is a hand held reader with a medium read range available in low or high frequency. It is particularly suited for non automated data capture in livestock management applications as well as industry & logistic applications.
ARE H5
The ARE H5 is a full ISO hand held reader with a long read range. It is particularily suited for non- automated data capture in livestock management applications. With its reading performance it suits as well all kind of Industry & Logistic applications.
Antennas
AAN PT8
The antenna ANN X1 is a passive unit designed for the ARE i5 MTX reader.The antenna is used for static and dynamic applications in automation technologies.
