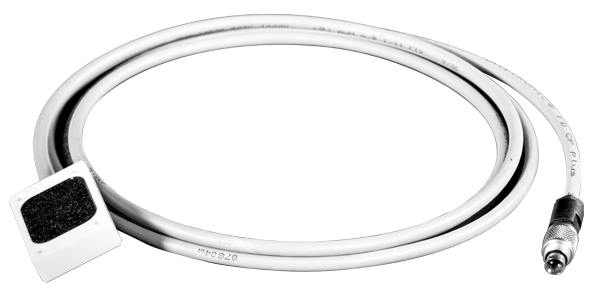

Antenna AAN X1

The antenna ANN X1 is a passive unit designed for the ARE i2 reader. Because of its small dimensions ( 30x40 mm ), it is well suited as well for both, static as well as dynamic applications. It is available as air core coil or ferrite coil respectively.

AAN X1
Do you have questions? Please contact us:
Phone: +49 (0)731 14 00 88 0
E-Mail: info@aegid.de
  • Electrical characteristics
  • ARE i2 LF
  • 125 kHz, 134.2 kHz
  • Environment
  • -20°C up to +70°C (+140°C opt. only antenna)
  • -20°C up to +70°C (+140°C opt. only antenna)
  • IP 65
  • IEC 68-2-6 / 29
  • Dimensions
  • Ca. 50 g
  • 46 mm
  • 30 mm
  • 10 mm
  • Plastic
  • Additional information
  • cable length between antenna electronics and reader: max. 10 m flexible | rigid high-temperatur cable opt.

    Subject to change without notice
